MYS-503N4

MYS-503N4

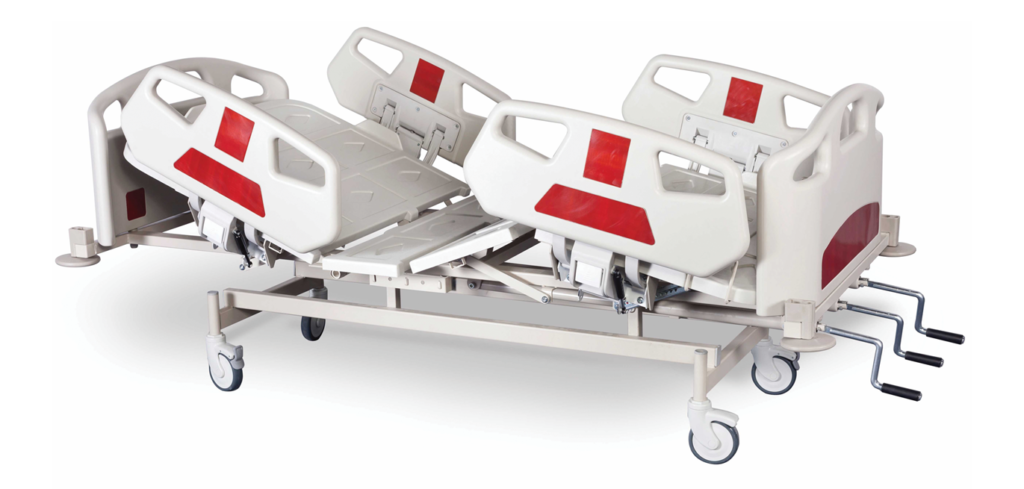

3-CRANK MECHANICAL HOSPITAL BED



Meyosis Mechanical Hospital Beds are designed with a participatory approach in accordance with the EN 60601-2-52 standard. With the motto “Comfort in Treatment,” Meyosis aims to provide comfort for both the patient and healthcare personnel.

Brochure

GENERAL FEATURES:

  • Back and leg movements, height adjustment, back-leg movement (vascular), and knee bending are controlled by three manual cranks.
  • Features a dual automatic regression system that minimizes pressure in the abdominal and pelvic areas.
  • Easily removable Polypropylene (PP) head and foot panels.
  • 4-section PP material side rails with gas springs and angle indicators.
  • 4-section easy-to-clean ABS plastic lying surface.
  • Electrostatically powder-coated metal structure.
  • Ø125 mm diameter, 360° rotatable, cross-braked castors.
  • Accessory slots in all four corners of the bed, one height-adjustable IV pole.
  • Drainage hooks and belt hooks on both sides of the bed.
  • Protective plastic bumpers.
  • Alternative color options for side rails.
  • Antibacterial and waterproof zippered mattress with 22-density foam.
Width103 (cm)
Height218 (cm)
Min. Height:51 (cm)
Max. Height:75 (cm)
Mattress Width90 (cm)
Mattress Length:190 (cm)
Mattress Thickness:11 (cm)
